*A Detailed and Visual Step-by-Step Walkthrough*

If you are an aspiring data scientist or a veteran data scientist, this article is for you! In this article, we will be building a simple regression model in Python. To spice things up a bit, we will not be using the widely popular and ubiquitous *Boston Housing* dataset but instead, we will be using a simple Bioinformatics dataset. Particularly, we will be using the ** Delaney Solubility** dataset that represents an important physicochemical property in computational drug discovery.

The aspiring data scientist will find the step-by-step tutorial particularly accessible while the veteran data scientist may want to find a new challenging dataset for which to try out their state-of-the-art machine learning algorithm or workflow.

## 1. What we are Building Today?

A regression model! And we are going to use Python to do that. While we’re at it, we are going to use a bioinformatics dataset (technically, it’s cheminformatics dataset) for the model building.

Particularly, we are going to predict the LogS value which is the aqueous solubility of small molecules. The aqueous solubility value is a relative measure of the ability of a molecule to be soluble in water. It is an important physicochemical property of effective drugs.

What better way to get acquainted with the concept of what we are building today than a cartoon illustration!

## 2. Delaney Solubility Dataset

### 2.1. Data Understanding

As the name implies, the ** Delaney solubility** dataset is comprised of the

**values along with their corresponding chemical structure for a set of 1,144 molecules. For those, outside the field of biology there are some terms that we will spend some time on clarifying.**

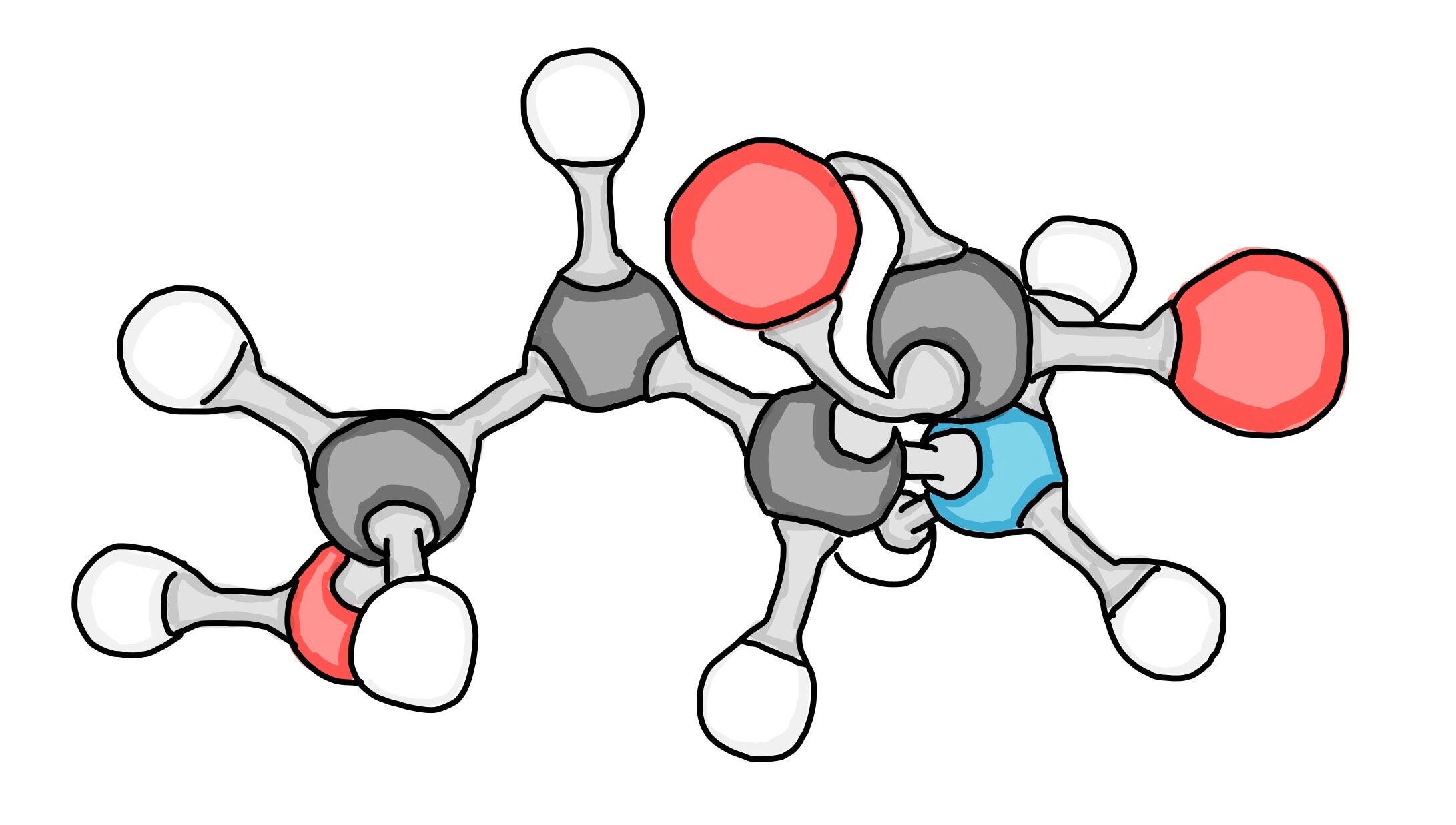

*aqueous solubility*** Molecules** or sometimes referred to as small molecules or compounds are chemical entities that are made up of atoms. Let’s use some analogy here and let’s think of atoms as being equivalent to Lego blocks where 1 atom being 1 Lego block. When we use several Lego blocks to build something whether it be a house, a car or some abstract entity; such constructed entities are comparable to molecules. Thus, we can refer to the specific arrangement and connectivity of atoms to form a molecule as the

**.**

*chemical structure*So how does each of the entities that you are building differ? Well, they differ by the spatial connectivity of the blocks (i.e. how the individual blocks are connected). In chemical terms, each molecules differ by their chemical structures. Thus, if you alter the connectivity of the blocks, consequently you would have effectively altered the entity that you are building. For molecules, if atom types (e.g. carbon, oxygen, nitrogen, sulfur, phosphorus, fluorine, chlorine, etc.) or groups of atoms (e.g. hydroxy, methoxy, carboxy, ether, etc.) are altered then the molecules would also be altered consequently becoming a new chemical entity (i.e. that is a new molecule is produced).

To become an effective drug, molecules will need to be uptake and distributed in the human body and such property is directly governed by the ** aqueous solubility**. Solubility is an important property that researchers take into consideration in the design and development of therapeutic drugs. Thus, a potent drug that is unable to reach the desired destination target owing to its poor solubility would be a poor drug candidate.

### 2.2. Retrieving the Dataset

The aqueous solubility dataset as performed by Delaney in the research paper entitled ESOL: Estimating Aqueous Solubility Directly from Molecular Structure is available as a Supplementary file. For your convenience, we have also downloaded the entire **Delaney solubility dataset** and made it available on the Data Professor GitHub.

**CODE PRACTICE**

Let’s get started, shall we?

Fire up Google Colab or your Jupyter Notebook and run the following code cells.

**CODE EXPLANATION**

Let’s now go over what each code cells mean.

The **first code cell**,

- As the code literally says, we are going to import the
`pandas`

library as`pd`

.

The **second code cell**:

- Assigns the URL where the Delaney solubility dataset resides to the
`delaney_url`

variable. - Reads in the Delaney solubility dataset via the
`pd.read_csv()`

function and assigns the resulting dataframe to the`delaney_df`

variable. - Calls the
`delaney_df`

variable to return the output value that essentially prints out a dataframe containing the following 4 columns:

**Compound ID**— Names of the compounds.**measured log(solubility:mol/L)**— The experimental aqueous solubility values as reported in the original research article by Delaney.**ESOL predicted log(solubility:mol/L)**— Predicted aqueous solubility values as reported in the original research article by Delaney.**SMILES**— A 1-dimensional encoding of the chemical structure information

### 2.3. Calculating the Molecular Descriptors

A point it note is that the above dataset as originally provided by the authors is not yet useable out of the box. Particularly, we will have to use the ** SMILES notation** to calculate the

**via the**

*molecular descriptors**rdkit*Python library as demonstrated in a step-by-step manner in a previous Medium article (

*How to Use Machine Learning for Drug Discovery*).

It should be noted that the ** SMILES notation** is a one-dimensional depiction of the chemical structure information of the molecules.

**are quantitative or qualitative description of the unique physicochemical properties of molecules.**

*Molecular descriptors*Let’s think of molecular descriptors as a way to uniquely represent the molecules in numerical form that can be understood by machine learning algorithms to learn from, make predictions and provide useful knowledge on the ** structure-activity relationship**. As previously noted, the specific arrangement and connectivity of atoms produce different chemical structures that consequently dictates the resulting activity that they will produce. Such notion is known as structure-activity relationship.

The processed version of the dataset containing the calculated molecular descriptors along with their corresponding response variable (logS) is shown below. This processed dataset is now ready to be used for machine learning model building whereby the first 4 variables can be used as the **X** variables and the logS variables can be used as the **Y** variable.

A quick description of the 4 molecular descriptors and response variable is provided below:

**cLogP**— Octanol-water partition coefficient**MW**— Molecular weight**RB**—Number of rotatable bonds**AP***—*Aromatic proportion = number of aromatic atoms / total number of heavy atoms**LogS**— Log of the aqueous solubility

**CODE PRACTICE**

Let’s continue by reading in the CSV file that contains the calculated molecular descriptors.

**CODE EXPLANATION**

Let’s now go over what the code cells mean.

- Assigns the URL where the Delaney solubility dataset (with calculated descriptors) resides to the
`delaney_url`

variable. - Reads in the Delaney solubility dataset (with calculated descriptors) via the
`pd.read_csv()`

function and assigns the resulting dataframe to the`delaney_descriptors_df`

variable. - Calls the
`delaney_descriptors_df`

variable to return the output value that essentially prints out a dataframe containing the following 5 columns:

- MolLogP
- MolWt
- NumRotatableBonds
- AromaticProportion
- logS

The first 4 columns are molecular descriptors computed using the `rdkit`

Python library. The fifth column is the response variable *logS*.

## 3. Data Preparation

### 3.1. Separating the data as X and Y variables

In building a machine learning model using the `scikit-learn`

library, we would need to separate the dataset into the input features (the **X** variables) and the target response variable (the **Y** variable).

**CODE PRACTICE**

Follow along and implement the following 2 code cells to separate the dataset contained with the `delaney_descriptors_df`

dataframe to **X** and **Y** subsets.

**CODE EXPLANATION**

Let’s take a look at the 2 code cells.

*First code cell:*

- Here we are using the drop() function to specifically ‘drop’ the logS variable (which is the
**Y**variable and we will be dealing with it in the next code cell). As a result, we will have 4 remaining variables which are assigned to the**X**dataframe. Particularly, we apply the`drop()`

function to the`delaney_descriptors_df`

dataframe as in`delaney_descriptors_df.drop(‘logS’, axis=1)`

where the first input argument is the specific column that we want to drop and the second input argument of`axis=1`

specifies that the first input argument is a column.

**Second code cell:**

- Here we select a single column (the ‘logS’ column) from the
`delaney_descriptors_df`

dataframe via`delaney_descriptors_df.logS`

and assigning this to the**Y**variable.

## 3.2. Data splitting

In evaluating the model performance, the standard practice is to split the dataset into 2 (or more partitions) partitions and here we will be using the 80/20 split ratio whereby the 80% subset will be used as the train set and the 20% subset the test set. As scikit-learn requires that the data be further separated to their **X** and **Y** components, the `train_test_split()`

function can readily perform the above-mentioned task.

**CODE PRACTICE**

Let’s implement the following 2 code cells.

**CODE EXPLANATION**

Let’s take a look at what the code is doing.

*First code cell:*

- Here we will be importing the
`train_test_split`

from thescikit-learn library.

*Second code cell:*

- We start by defining the names of the 4 variables that the
`train_test_split()`

function will generate and this includes`X_train`

,`X_test`

,`Y_train`

and`Y_test`

. The first 2 corresponds to the X dataframes for the train and test sets while the last 2 corresponds to the Y variables for the train and test sets.

## 4. Linear Regression Model

Now, comes the fun part and let’s build a regression model.

### 4.1. Training a linear regression model

**CODE PRACTICE**

Here, we will be using the `LinearRegression()`

function from scikit-learn to build a model using the ordinary least squares linear regression.

**CODE EXPLANATION**

Let’s see what the codes are doing

**First code cell:**

- Here we import the linear_model from the scikit-learn library

**Second code cell:**

- We assign the
`linear_model.LinearRegression()`

function to the`model`

variable. - A model is built using the command
`model.fit(X_train, Y_train)`

whereby the model.fit() function will take`X_train`

and`Y_train`

as input arguments to build or train a model. Particularly, the`X_train`

contains the input features while the`Y_train`

contains the response variable (logS).

### 4.2. Apply trained model to predict logS from the training and test set

As mentioned above, `model.fit()`

trains the model and the resulting trained model is saved into the `model`

variable.

**CODE PRACTICE**

We will now apply the trained model to make predictions on the training set (`X_train`

).

We will now apply the trained model to make predictions on the test set (`X_test`

).

**CODE EXPLANATION**

Let’s proceed to the explanation.

The following explanation will cover only the training set (`X_train`

) as the exact same concept can be identically applied to the test set (`X_test`

) by performing the following simple tweaks:

- Replace
`X_train`

by`X_test`

- Replace
`Y_train`

by`Y_test`

- Replace
`Y_pred_train`

by`Y_pred_test`

Everything else are exactly the same.

*First code cell:*

`model.predict()`

and using `X_train`

as the input argument such that we run the command `model.predict(X_train)`

. The resulting predicted values will be assigned to the `Y_pred_train`

variable.*Second code cell:*

Model performance metrics are now printed.

- Regression coefficient values are obtained from
`model.coef_`

, - The y-intercept value is obtained from
`model.intercept_`

, - The mean squared error (MSE) is computed using the
`mean_squared_error()`

function using`Y_train`

and`Y_pred_train`

as input arguments such that we run`mean_squared_error(Y_train, Y_pred_train)`

- The coefficient of determination (also known as R²) is computed using the
`r2_score()`

function using`Y_train`

and`Y_pred_train`

as input arguments such that we run`r2_score(Y_train, Y_pred_train)`

### 4.3. Printing out the Regression Equation

The equation of a linear regression model is actually the regression model itself whereby you can plug in the input feature values and the equation will return the target response values (LogS).

**CODE PRACTICE**

Let’s now print out the regression model equation.

**CODE EXPLANATION**

*First code cell:*

- All the components of the regression model equation is derived from the
`model`

variable. The y-intercept and the regression coefficients for LogP, MW, RB and AP are provided in`model.intercept_`

,`model.coef_[0]`

,`model.coef_[1]`

,`model.coef_[2]`

and`model.coef_[3]`

.

*Second code cell:*

- Here we put together the components and print out the equation via the
`print()`

function.

## 5. Scatter Plot of experimental vs. predicted LogS

We will now visualize the relative distribution of the experimental versus predicted LogS by means of a scatter plot. Such plot will allow us to quickly see the model performance.

**CODE PRACTICE**

In the forthcoming examples, I will show you how to layout the 2 sub-plots differently namely: (1) vertical plot and (2) horizontal plot.

**CODE EXPLANATION**

Let’s now take a look at the underlying code for implementing the vertical and horizontal plots. Here, I provide 2 options for you to choose from whether to have the layout of this multi-plot figure in the vertical or horizontal layout.

*Import libraries*

Both start by importing the necessary libraries namely `matplotlib`

and `numpy`

. Particularly, most of the code will be using `matplotlib`

for creating the plot while the `numpy`

library is used here to add a trend line.

*Define figure size*

Next, we specify the figure dimensions (what will be the width and height of the figure) via `plt.figure(figsize=(5,11))`

for the vertical plot and `plt.figure(figsize=(11,5))`

for the horizontal plot. Particularly, (5,11) tells matplotlib that the figure for the vertical plot should be 5 inches wide and 11 inches tall while the inverse is used for the horizontal plot.

*Define placeholders for the sub-plots*

We will tell matplotlib that we want to have 2 rows and 1 column and thus its layout will be that of a vertical plot. This is specified by `plt.subplot(2, 1, 1)`

where input arguments of `2, 1, 1`

refers to 2 rows, 1 column and the particular sub-plot that we are creating underneath it. In other words, let’s think of the use of `plt.subplot()`

function as a way of structuring the plot by creating placeholders for the various sub-plots that the figure contains. The second sub-plot of the vertical plot is specified by the value of 2 in the third input argument of the `plt.subplot()`

function as in `plt.subplot(2, 1, 2)`

.

By applying the same concept, the structure of the horizontal plot is created to have 1 row and 2 columns via `plt.subplot(1, 2, 1)`

and `plt.subplot(1, 2, 2)`

that houses the 2 sub-plots.

*Creating the scatter plot*

Now that the general structure of the figure is in place, let’s now add the data visualizations. The data scatters are added using the `plt.scatter()`

function as in `plt.scatter(x=Y_train, y=Y_pred_train, c=”#7CAE00", alpha=0.3)`

where `x`

refers to the data column to use for the *x* axis, `y`

refers to the data column to use for the *y* axis, `c`

refers to the color to use for the scattered data points and `alpha`

refers to the alpha transparency level (how translucent the scattered data points should be, the lower the number the more transparent it becomes), respectively.

*Adding the trend line*

Next, we use the `np.polyfit()`

and `np.poly1d()`

functions from `numpy`

together with the `plt.plot ()`

function from `matplotlib`

to create the trend line.

# Add trendline# https://stackoverflow.com/questions/26447191/how-to-add-trendline-in-python-matplotlib-dot-scatter-graphs

z = np.polyfit(Y_train, Y_pred_train, 1)

p = np.poly1d(z)

plt.plot(Y_test,p(Y_test),"#F8766D")

*Adding the x and y axes labels*

To add labels for the *x* and *y* axes, we use the `plt.xlabel()`

and `plt.ylabel()`

functions. It should be noticed that for the vertical plot, we omit the x axis label for the top sub-plot (*Why? Because it is redundant with the x-axis label for the bottom sub-plot*).

*Saving the figure*

Finally, we are going to save the constructed figure to file and we can do that using the `plt.savefig()`

function from `matplotlib`

and specifying the file name as the input argument. Lastly, finish off with `plt.show()`

.

plt.savefig('plot_vertical_logS.png')

plt.savefig('plot_vertical_logS.pdf')

plt.show()

**VISUAL EXPLANATION**

The above section provides a text-based explanation and in this section we are going to do the same with this visual explanation that makes use of color highlights to distinguish the different components of the plot.
